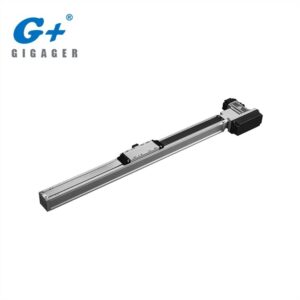

GKR40

Long strokes and a wide range of motion are easily accommodated by it. A slide rail, belt, and pulley structure is used in the aluminium extrusion structure, reducing assembly costs and times. It is possible to reach a maximum stroke of 500mm. 5000 mm/s of linear speed improves the machine’s production efficiency.

>> Main Usage:

Suitable for applications requiring long-distance movement 1500mm above, such as carrying, printing, and dispensing adhesive.

>> Industries:

TFT-LCD

Solar energy

Food Industry

Packing

CNC Machining

>> Applications:

Parts shifting between production lines

High-speed conveyor

Tape cutting device

Parts shifting betting between CNC machines

Maximum stroke: 16m

Repeatability: + 0.1mm

Steel strip cover with roller design, make it anti-dust

Easy maintenance

Able to be used in vertical application

The belt tension can be adjusted without disassembling

Greasing from outer fuel nozzle. No need to disassemble the unit.

Fixed through the side mounting bracket or from the bottom is available

The motor-mounted position is optional and makes the machine design more flexible.
