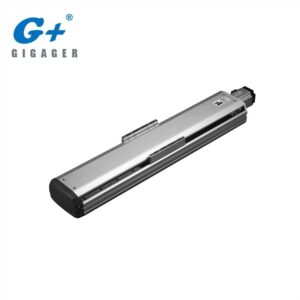

GMH13-400W (Discontinued)

Ball screw drive modules provide high accuracy and steady movement, as well as ensure reliability and quality.

Repeatability of +0.01mm is provided.

The payload ranges from 15 kg to 150 kg.

>> Main Usage:

Positioning, Picking and placing, Carrying, press-fitting.

>> Industries:

TFT-LCD

Semiconductor

Solar energy

>> Applications:

Electronic device assembling

Liquid filling

Welding

Press-fitting of Circuit Board and Wafer Box.

Unit arrangement.

■Patent oil-added hole

The only patented fuel nozzle design in the industry that greases with a single fuel nozzle on the slider, and can maintain the nut and multiple sets of sliders at the same time, which makes the maintenance more convenient and time-saving. Installed direction is optional according to customers’ demand.

■High rigidity body

Adopt integrated aluminium extrusion structure and analysis element to get the best rigidity-to-weight ratio.

■Winding resistant cover

Special anti-winding design. The cover will not twist and deform easily under long strokes application.

■Motor brand

Optional servo motors.

■Motor Assembly Location

The motor-mounted position is optional and makes the machine design more flexible.

■Sensor location

The sensor position can be built-in or external installation.

■Ball screw brand and lead

Screw specifications and brand choices are according to different accuracy and speed.
