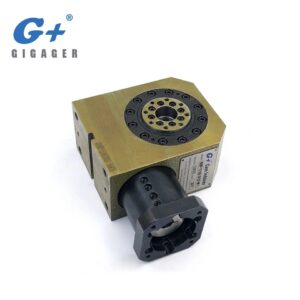

GYH215M

Hollow Indexing Table / GYH Series

Applies the principle of arc surface indexing for precise motion control.
The transmission component consists of an input shaft (arc indexing roller) and a roller (output shaft). The cam groove surface on the input shaft aligns with the driven roller element’s outer ring surface, driving the table.
Torque transmission during rotation is achieved through internal roller bearings, resulting in a hollow indexing table with zero backlash.
The design ensures excellent precision and efficiency while preventing internal parts from wearing, ensuring prolonged high-precision performance.

Working principle
