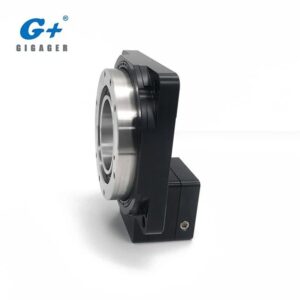

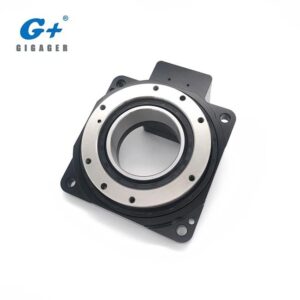

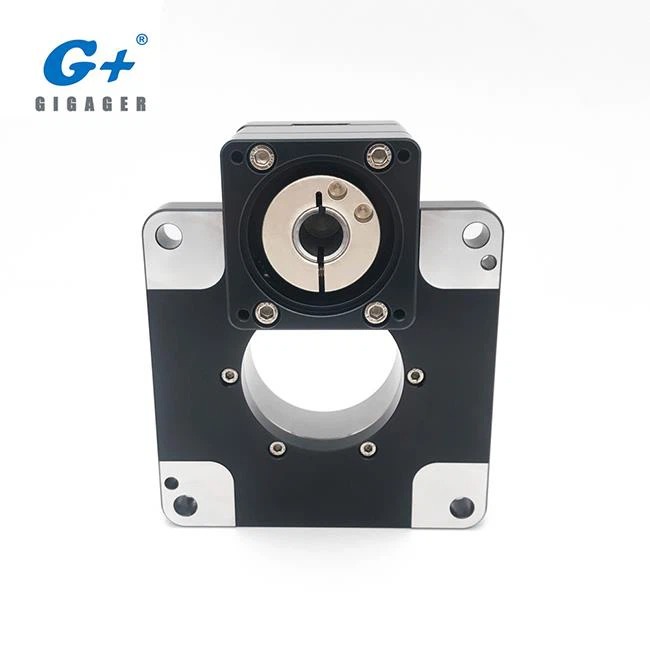

1. Specification of Model GSN 130-18K-SV
Â
|
Parameter |
||
|
Motor Type |
Brand 200-400W SV Motor |
|
|
Rotary Platform Bearing |
Cross Roller Bearing |
|
|
Permissible Torque |
N.m |
20 |
|
Permissible Speed |
rpm |
150(Table Surface) |
|
Gear Ratio |
1:18 |
|
|
Moment of Inertia |
kg.m2 |
81556×10-7 |
|
Permissible Axial Load |
N |
2000 |
|
Permissible Moment of Inertia Load |
N.m | 50 |
|
Positioning Accuracy |
min |
≦ 1 |
|
Repeatability |
sec | ±5 ( 0.001° ) |
|
Platform Flatness |
mm |
±0.005 |
|
Platform Concentricity |
mm |
±0.01 |
|
Ingress Protection |
IP |
40 |
|
Precision Lifespan |
H |
20000 |
|
Weight |
kg |
2.5 |
Â
|
Motor Parameter |
||
|
Brand |
Code |
Model |
|
Fuji |
F |
GYS 201D5 |
|
Mitsubishi |
M |
HF-KFS-23/43 |
|
Panasonic |
P |
MSMD-022/042 |
|
SANYO |
S |
Q1AA06020D |
|
Yaskawa |
Y |
SGMAH-02/04A |
|
Oriental |
O |
DX220/240 |
|
Delta |
T |
ECMA-C30602/04 |
*The servo motor is configured by the customer. The above model is for reference only
Â

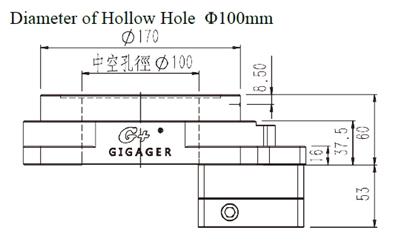

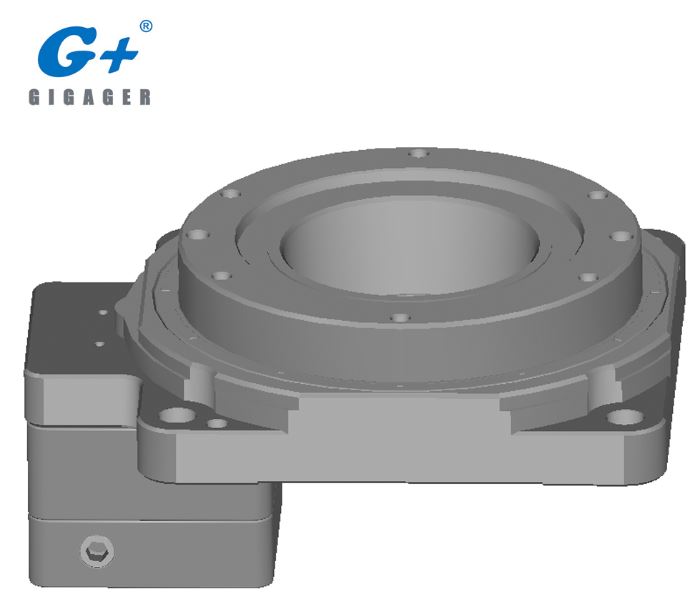

2. Introduction
Â
3. What is the Product Features of SV type?
Â

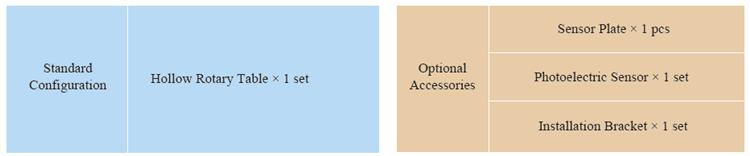

4. System Configuration
Â

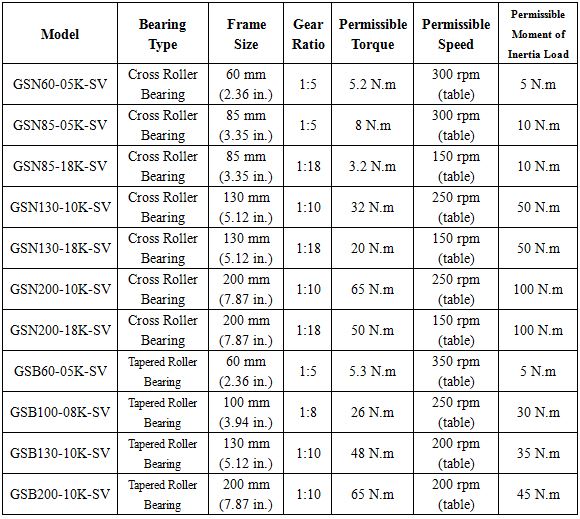

5. How Many SV Model Are Available?
Â

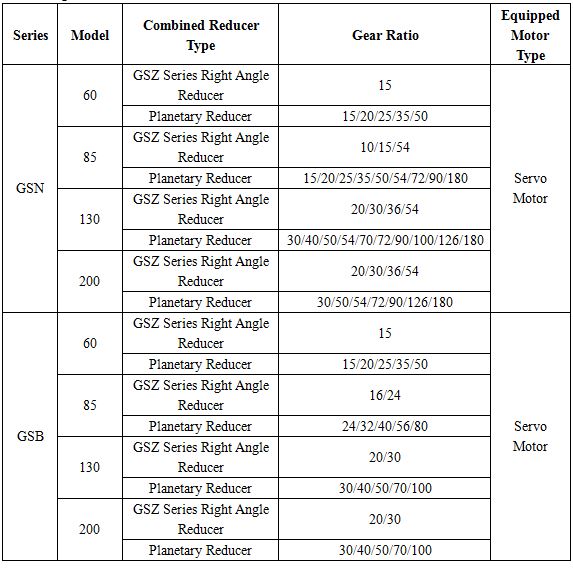

6. How to Achieve for Bigger Gear Ratio Output?
Â
Combination
Â
Â
7. What Type of Device Could Use?
Demo Video Link:
a. Demo for Gyro Test https://youtu.be/PwKiObIMXRM
b. Demo for the 4th Axis or 5th Axis https://youtu.be/L9gheXQ6zLc
For more video, please click GIGAGER Youtube Channel: https://www.youtube.com/playlist?list=PLT-2VrhPP3YItwfN_wA4YkS8bzfBpJu39
Â
8. How to Select the Right Model for My Device?
For more info of model selection of Hollow Rotary Actuator, please refer to the Model Selection Pages in Catalogue.
Â
9. How to Install?
Please refer to the Catalogue or contact our technical sales.
Â
10. Why choose GIGAGER?
