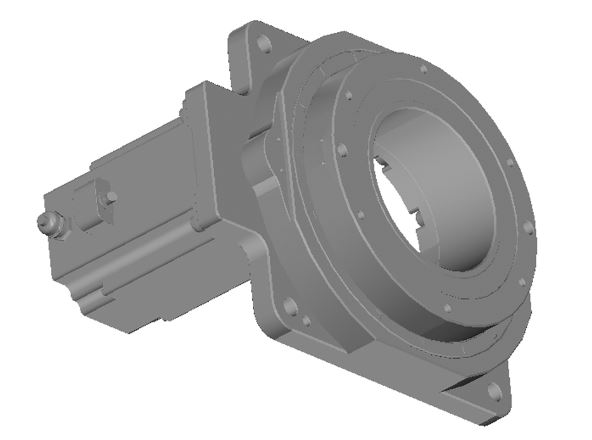

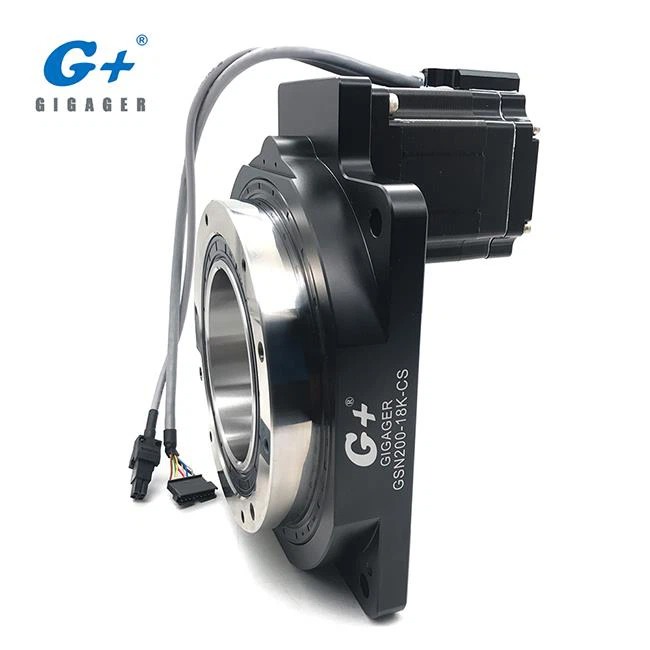

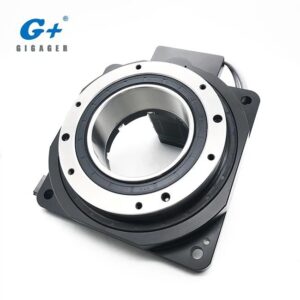

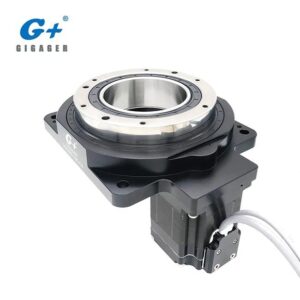

1. Specification of Model Hollow Rotary Reducer GSN200-18K-CS
|
Parameter |
||
|
Motor Type |
Dedicated Closed Loop Stepper Motor |
|
|
Rotary Platform Bearing |
Cross Roller Bearing |
|
|
Permissible Torque |
N.m |
50 |
|
Permissible Speed |
rpm |
100(Table Surface) |
|
Gear Ratio |
1:18 |
|
|
Moment of Inertia |
kg.m2 |
108160×10-6 |
|
Permissible Axial Load |
N |
4000 |
|
Permissible Moment of Inertia Load |
N.m | 100 |
|
Positioning Accuracy |
min |
≦ 2 |
|
Repeatability |
sec |
±5 ( 0.001° ) |
|
Platform Flatness |
mm |
±0.005 |
|
Platform Concentricity |
mm |
±0.01 |
|
Ingress Protection |
IP |
40 |
|
Precision Lifespan |
H |
20000 |
|
Weight |
kg |
10(including motor) |
Â
|
Motor Parameter |
|||
|
Dimension |
mm |
86 |
|
|
Rated Voltage       |
V/phase | 3.36 | |
|
Rated  Current       |
A/phase | 5.6 | |
|
Coil Impedance     |
Ω/phase | 0.6 | |
|
Coil Inductance |
mh |
5.2 |
|
|
Holding Torque |
N.m |
9.5 |
|
|
Moment of Inertia |
g.cm2 |
2500 |
|
|
Motor Length |
mm |
115 |
|
|
Encoder  Resolution |
P/R | 2500 | |
|
Ingress  Protection |
IP |
20 |
|
|
Step Angle |
1.8° | ||
|
Lead |
4 | ||
| Â | |||
|
Dedicated Driver |
|||
|
Input Voltage |
DC48V |
||
|
Command Input |
Pulse + Direction DC5V |
||
Â
2. Introduction
Â
3. What is the Product Features?
Â

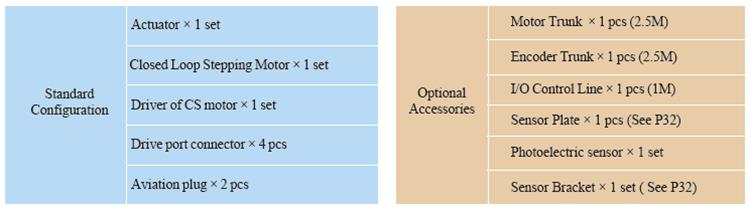

4. System Configuration
Â
5. How Many CS Model Are Available?
Â
6. What Type of Device Could Use?
Demo Video Link:
a. Demo for Gyro Test https://youtu.be/PwKiObIMXRM
b. Demo for the 4th Axis or 5th Axis https://youtu.be/L9gheXQ6zLc
For more video, please click GIGAGER Youtube Channel: https://www.youtube.com/playlist?list=PLT-2VrhPP3YItwfN_wA4YkS8bzfBpJu39
Â

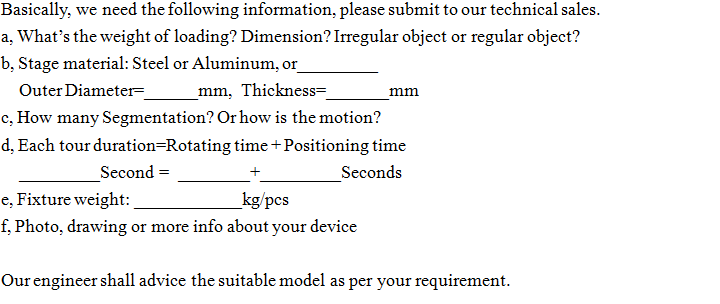

7. How to Select the Right Model for My Device?
For more info of model selection of Hollow Rotary Reducer, please refer to the Model Selection Pages in Catalogue.
