Hypoid Servo Gearbox

This series has been updated. Please click this link to check the new product details page.

Designed specifically for dynamic servo motors and also matched with stepper motor, which are able to realize high transmission ratios, high torque, high rigidity with high precision and low backlash.

Featured with high waterproof and dustproof rate with the Ingress Protection grade IP65 level. They are free maintenance, lubricated for life, which made from a stainless steel housing and a corrosion resistant surface finish and a backlash free torsionally stiff coupling at the input, so that they can meet the requirement of big moment inertia loading rotary motion.

Ratios are fixed 1:30 without connecting planetary gearbox. Once connecting with planetary gearbox, the ratio can be up to 90K, 120K, 150K, 210K,etc.

Interchangeable flange plates and couplings at the input cater for current ranges of servo motors and stepper motor.

1.Features?

• High efficiency of up to 96%

• Low backlash with repeatability less than 10 arc-sec

• Constant backlash over the lifetime

• One-stage gearbox with ratio fixed 1:30

• Two-stages gearbox with ratio up to 1:210

• Hollow shaft design for easy wiring and piping

• Designed for dynamic servo drive solutions

• Matched with servo stepper motor and stepper motor as well

• Compact and robust design through one-piece casted steel housing

• Motor connection with flexible motor flange and coupling system

• Lifetime lubrication, free maintenance

2.Photo

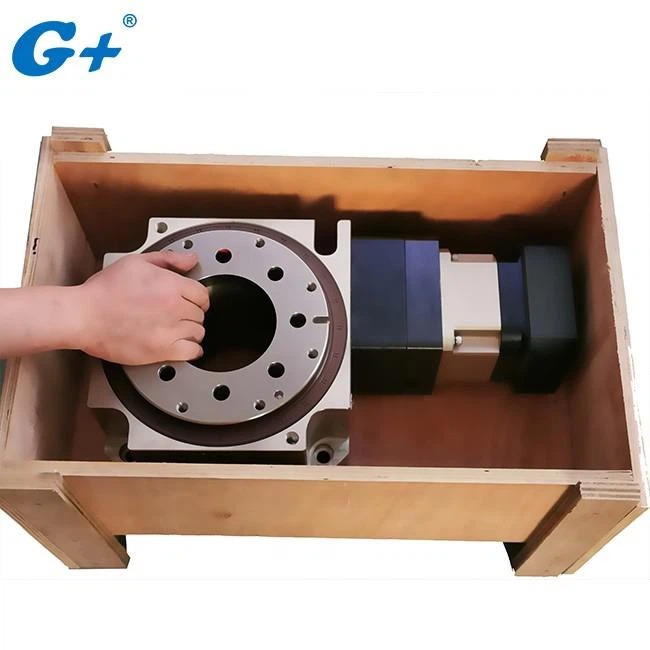

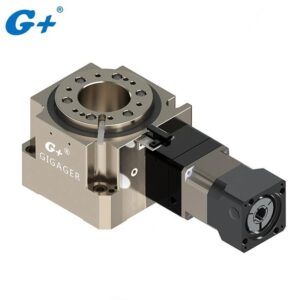

Hypoid Rotary Gearbox with Planetary Gearbox

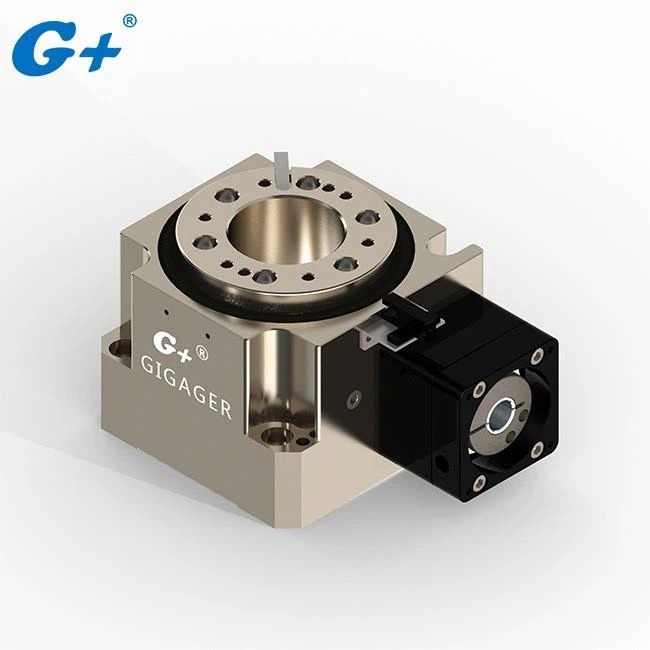

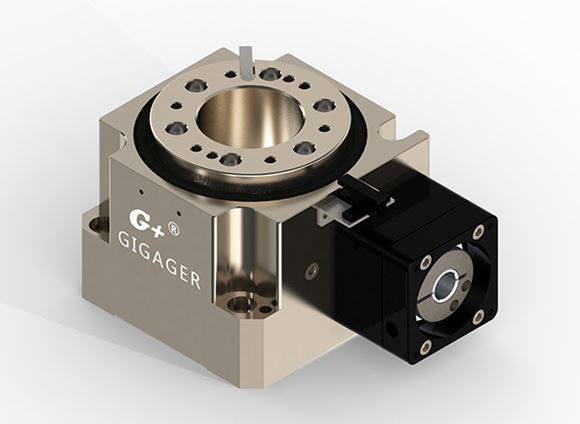

Servo Hypoid Rotary Gearbox

3.How Many Types Available

Series	Gear Ratio	Matched Motor Type	Repeatability	Positioning Accuracy	Permissible Torque	Allowable Table Speed	Weight
GSH60-30K	1:30	Servo Motor/Stepper Motor	≤10 arc sec	≤50 arc sec	30 N.m	90rpm	0.9kg
GSH100-30K	1:30	Servo Motor/Stepper Motor	≤10 arc sec	≤50 arc sec	115 N.m	90rpm	8.5kg
GSH150-30K	1:30	Servo Motor/Stepper Motor	≤10 arc sec	≤50 arc sec	220 N.m	90rpm	18kg
GSH200-30K	1:30	Servo Motor	≤10 arc sec	≤50 arc sec	450 N.m	90rpm	57kg

3.Installation Method

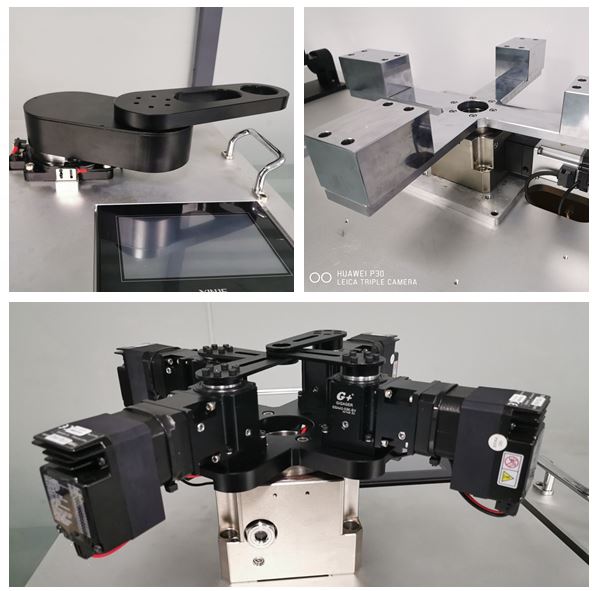

Horizontal Application

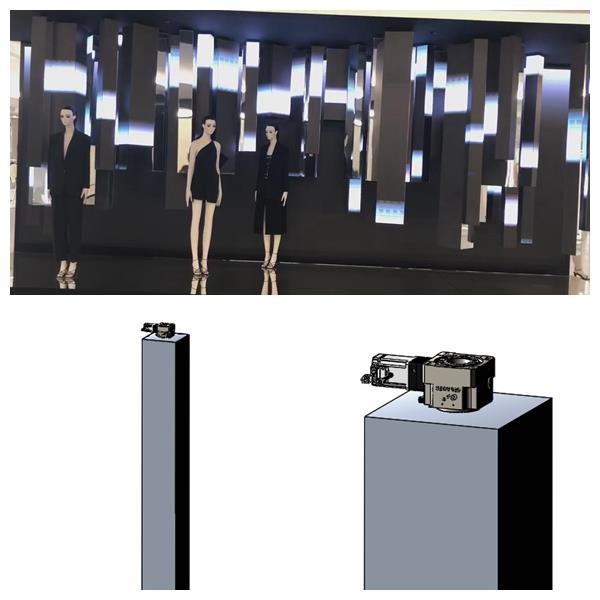

LED Screen Suspension & Rotary Project

4.Application

Widely used for high loading precision rotary automation line, CNC forth and fifth axes, robot arm, and some scenes for LED screen suspension rotary application.
