IP65 Hollow Table

This series has been updated. Please click this link to check the new product details page.

Featuring with high angular positioning accuracy combined with high load capacity with open center, G+ Rotary Tables provides arc-sec positioning resolution, offering water-tight and dust-proof characteristics, meeting the requirement for humidity and water jet scenes in automation production line. Eliminating backlash, friction and wear problems, products assure against ingress of water and external particles.

With special waterproof and dust-proof design, G+ IP Rated GSH Table ranges from IP65 to IP54 to provide more choices for manufacturers and automation integrators.

Besides, G+ IP Rated GSH Tables provide superior angular positioning ensured by hypoid gear design to eliminate backlash, friction and wear problems associated with worm, gear and belt drives. Free of maintenance and high throughput characteristics of the G+ IP Rated Rotary Stages yields the lowest total cost of ownership.

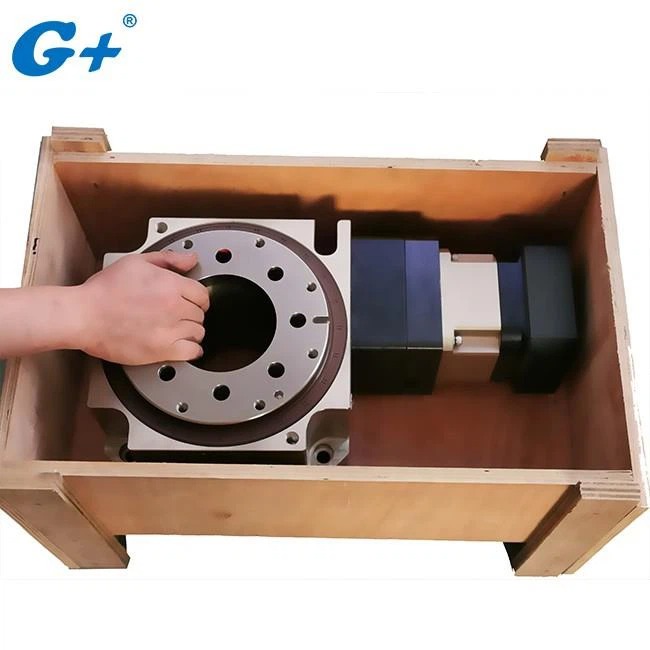

1.Photo

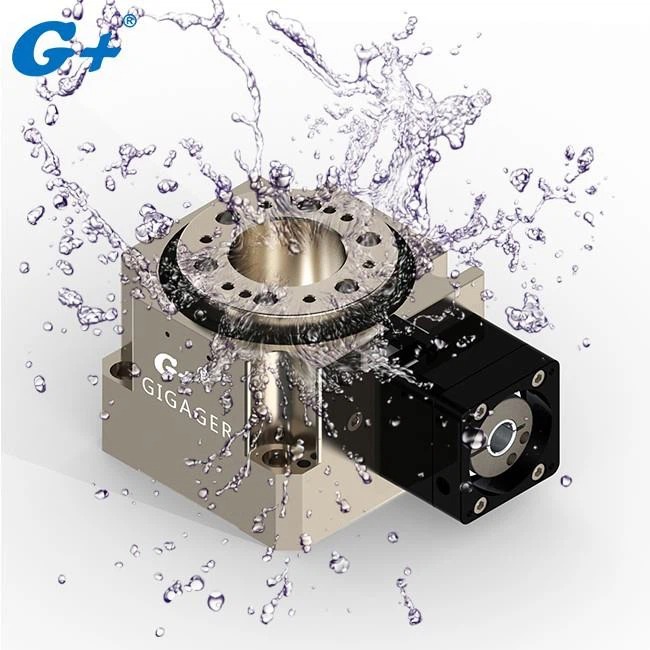

Waterproof Hollow Rotary Table

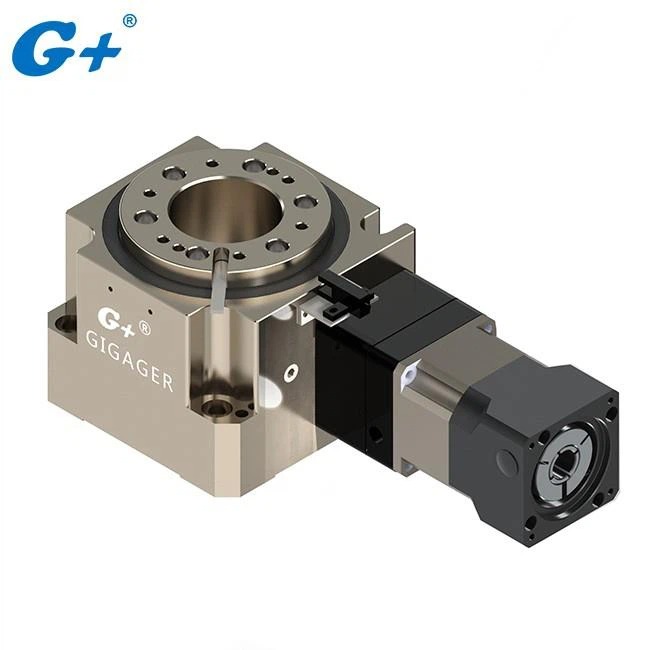

Hypoid Rotary Table

2.How Many Types Available

We provides 4 sizes of Rotary Gearboxes.

Series	Gear Ratio	IP Rated	Matched Motor Type	Repeatability	Positioning Accuracy	Permissible Torque	Allowable Table Speed	Weight
GSH60-30K	1:30	IP54	Servo Motor/Stepper Motor	≤10 arc sec	≤50 arc sec	30 N.m	90rpm	0.9kg
GSH100-30K	1:30	IP65	Servo Motor/Stepper Motor	≤10 arc sec	≤50 arc sec	115N.m	90rpm	8.5kg
GSH150-30K	1:30	IP65	Servo Motor/Stepper Motor	≤10 arc sec	≤50 arc sec	220 N.m	90rpm	18kg
GSH200-30K	1:30	IP65	Servo Motor	≤10 arc sec	≤50 arc sec	450 N.m	90rpm	57kg
