Loops Open Stepper Motor Hollow Rotary Shaft

This series has been updated. Please click this link to check the new product details page.

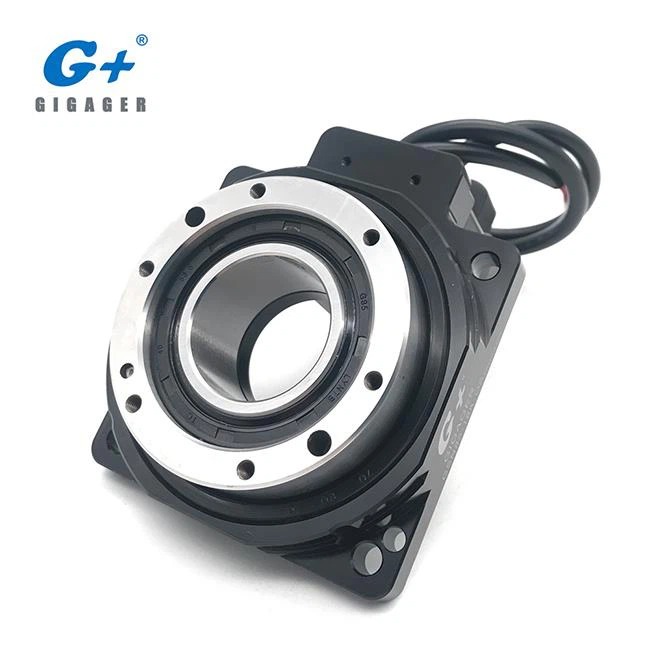

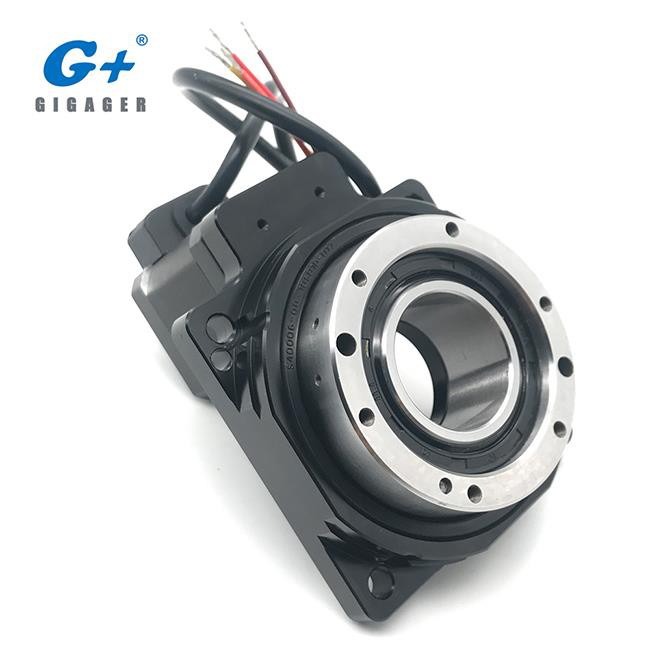

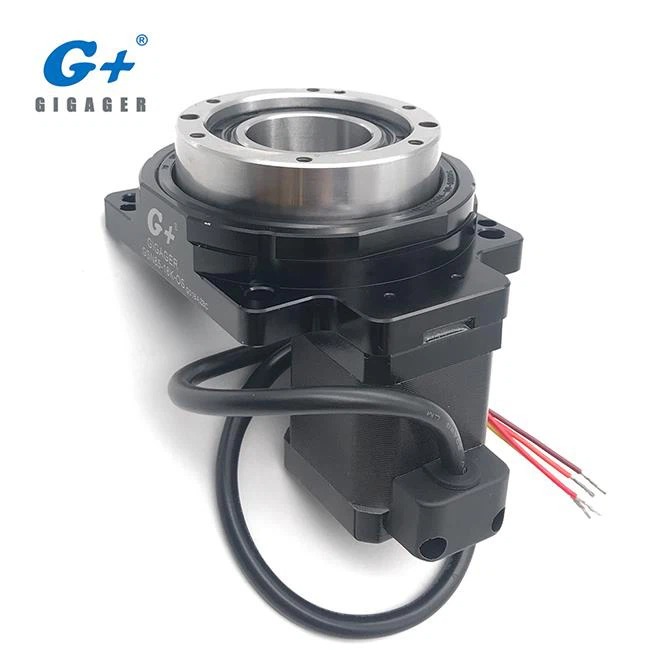

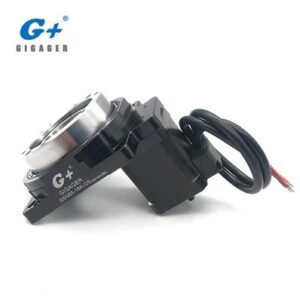

GSN85-18K-OS with table size 85mm gear ratio 1:18 and open loop stepper motor. It retains the ease of use of a stepper motor, while also allowing for highly accurate positioning of large inertia loads.

1. Specification of Model GSN 85-18K-OS

Parameter
Motor Type	Dedicated Open Loop Stepper Motor
Rotary Platform Bearing	Cross Roller Bearing
Permissible Torque	N.m	3.2
Permissible Speed	rpm	60(Table Surface)
Gear Ratio	1:18
Moment of Inertia	kg.m²	2534×10-6
Permissible Axial Load	N	500
Permissible Moment of Inertia Load	N.m	10
Positioning Accuracy	min	≦ 2
Repeatability	sec	±5 ( 0.001° )
Platform Flatness	mm	±0.005
Platform Concentricity	mm	±0.01
Ingress Protection	IP	40
Precision Lifespan	H	20000
Weight	kg	1.2(including motor)

Motor Parameter
Dimension	mm	42
Rated Voltage V/phase	3.25
Rated Current A/phase	1.3
Coil Impedance Ω/phase	2.5
Coil Inductance	mh	6.0
Holding Torque	N.m	0.6
Moment of Inertia	g.cm²	82
Motor Length	mm	64
Ingress Protection	IP	20
Step Angle	1.8°
Lead	4

Driver
Input Voltage	DC24V
Command Input	Pulse + Direction DC5V

2. Introduction

Gears are made of high strength carburizing alloy steel and the hardness of the tooth surface after carburizing can reach HRC60±2°.

With the help of packaged precise open loop stepper motor,it can make segments at any angle, which can meet the digit control that the cam indexer cannot achieve. The positioning accuracy is comparable with the direct drive motor which can realize the positioning of the inertia load in a short time.
