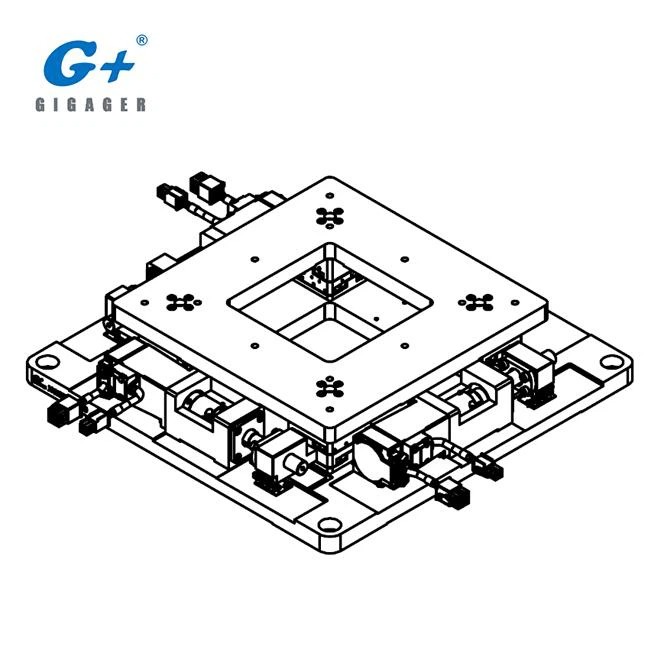

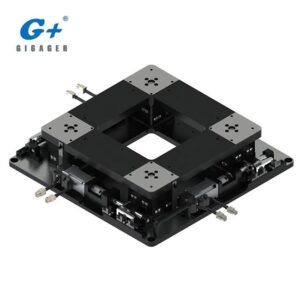

1. Specification of XXY250-75-350
|
Work Table |
250×250 |
Accuracy Level |
G：2μm |
|
Base Size |
350×350 |
B：5μm | |
|
Height |
75 |
P：10μm | |
|
Linear Stroke |
±5 |
Driver Screw |
1202 |
|
Action Angle |
±3° |
Suggesting Load |
Horizontal ≤50KG |
|
Action Flatness |
±0.03 |
Surface Processing |
Anodizing Sandblasting Treatment |
|
Driver |
50w servo /100w servo /42 stepper motor |
– | – |
Â
2. Introduction
Â
3. What is the Product Features?
Â
4. Motion Mode
*A,B,C is Rotary axis,D is Slave axis
Â
5. How Many Model Are Available?
Â
6. What Type of Device Could Use?
|
|
|
|
Electronic Inspection Device |
Multi Axis CNC Equipment |
| Â | Â |
|
|
|
|
Laminating Machine |
Manipulator |
| Â | Â |
|
|
|
| Laser Processing Device | Polishing Machine |
| Â | Â |
Video Link: https://youtu.be/N5LYWt6WYIU
For more application, please click GIGAGER Youtube Channel: https://www.youtube.com/playlist?list=PLT-2VrhPP3YItwfN_wA4YkS8bzfBpJu39
Â
7. How to Select the Right Model for My Device?
Please contact with our engineer for model selection suggestion.
