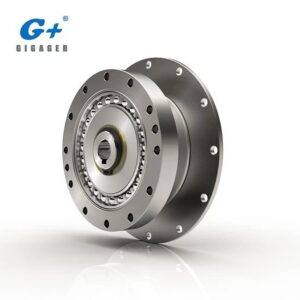

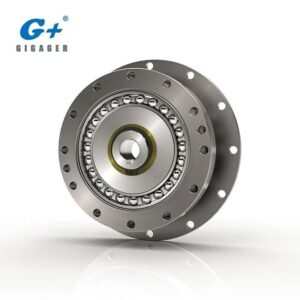

G+ SHF 14 series component gear set features a brim-like mounting surface and large through hole. Available in 4 reduction ratios 30:1 to 100:1, SHF offers peak torques 9 to 54 N•m. Made up of just 3 simple parts (flexspline, wave generator and circular spline), the SHF series were designed for direct integration into machinery and equipment.
1, Model Number
|
Series |
Size |
Ratio |
Type |
|
SHF |
14 |
30/50/80/100 |
2A-R |
2, Technical Data
|
Gear Model Number |
SHF-14-xx-2A-R |
||
|
Gear Performance Data |
|||
|
Serial  Number |
Ratio |
Limit  for Repeated Peak Torque |
Limit  for Momentary Peak Torque |
|
SHF-14-30-2A-R |
30 |
9 |
17 |
|
SHF-14-50-2A-R |
50 |
18 |
35 |
|
SHF-14-80-2A-R |
80 |
23 |
47 |
|
SHF-14-100-2A-R |
100 |
28 |
54 |
3, Drawing
