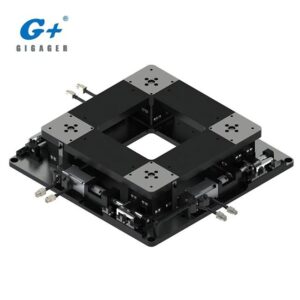

XXY Alignment Stage

As an innovator in the precision transmission, our goal is to provide users with innovative and high cost performance system solutions to meet users’ need. G+ XXY Alignment Stage, also called UVW Alignment Stage or XY Theta Stage, belongs to G+ Triple-axis Stage series which features with high resolution, high repeatability that widely applied in Optical Measurement Instrument, wafer alignment, LCD Panel Inspection, semiconductor handling, laser cutting and drilling, Laminating Machine, etc.

1. What is the XXY Alignment Stage?

XXY Alignment Stage, also called XYθ (theta) stages are designed for high precision alignment applications. It moves in an XY-plane and rotate around the center of the XY-plane. The terms alignment table, or XY-rotation stage are often used interchangeably with XYθ, XY-theta stage or UVW stage.

Available in 10 models, in three precision grades from G level 2μm, B level 5μm, P level 10μm respectively, these model have linear travels±5 mm. Additionally, XXY stages can rotate around the center of the XY plane up to ±5 degree to ±2 degree, while the horizontal loading from 10kg to 100kg.

The GIGAGER range of alignment stage are trusted by well-known system integrators and reputable factories from Huawei, Foxconn, Han’s Laser and etc in China.

In order to meet different design needs of users, we provide both hollow and solid designs. Due to the compact design with tri-axial, it greatly reduces the overall height, making the stage lighter, thinner and saving space.

2. What is the Product Features of GIGAGER XXY Alignment Table?

GIGAGER multiple axis alignment stage featured with high rigidity, high precision and longer life. The high quality and high cost performance makes it an ideal choice for engineers worldwide.

• Diverse Size & Structure

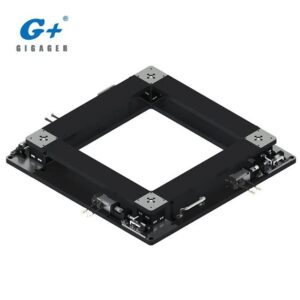

GIGAGER XXY alignment platform is available in both hollow and solid designs to meet different design needs of users, 10 model for options.

• Compact Design Saves Space

The tri-axial plane design greatly reduces the overall height, and the overall stage is lighter and thinner, saving space.

• High Precision, High Rigidity, Stable Guaranteed

The XXY alignment Stage performs strict quality control on incoming materials, assembly and testing to ensure the accuracy, stability and service life of the stage.

3. Motion Mode of GIGAGER XXY Alignment Table

*A,B,C is Rotary axis, D is Slave axis

4. How Many Model Are Available?

Series	Dimension			Linear Stroke (mm)	Rotary Stroke (°)	Load (kg)	Precision Grade
Series	Work Table Size (mm)	Height (mm)	Base Size (mm)	Linear Stroke (mm)	Rotary Stroke (°)	Load (kg)	Precision Grade
XXY5M-01	295X90	42	380X130	±5	±5°	10	G: High B: Standard P: Normal
XXY160-50-170-x	160×160	50	170×170	±5	±5°	20
XXY160-55-220-x	160×160	55	220×220	±5	±5°	30
XXY160-65-180-x	160×160	65	180×180	±5	±5°	30
XXY250-62-310-x	250×250	62	310×310	±5	±3°	50
XXY250-75-350-x	250×250	75	350×350	±5	±3°	100
XXY350-105-450-x	350×350	105	450×450	±5	±3°	100
XXY450-105-550-x	450×450	105	550×550	±5	±3°	100
XXY550-105-650-x	550×550	105	650×650	±5	±2.5°	100
XXY650-105-750-x	650×650	105	750×750	±5	±2°	100

Order Code Example 2: XXY750-105-650-POrder Code Example 1: XXY170-50-160-G

Custom service is available as per user’s requirement.

For more details, please refer to attached Catalogue. (download the PDF in this page)

5. What Type of Device Could Use the XXY Alignment Stage?

GIGAGER XXY Alignment Table are widely applied in Panel Lamination Machinery, Panel Film Laminating Machines, Print Screen and 3D Printing, CNC Equipment, Angular Glass Cutting & Grinding Equipment, Wafer Alignment Equipment, Exposure Equipment, Semi-conductor Equipment, etc.
