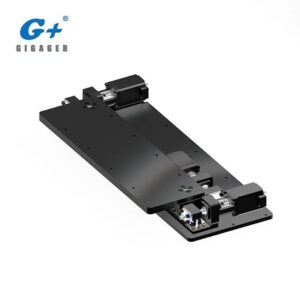

XXY5M-01

This series has been updated. Please click this link to check the new product details page.

XXY-5M series features a unique structural design that reduces platform weight and reduces table size.

At the same time, it has high load capacity and is suitable for using in machines of various small spaces.

1, Features of XXY5M Positioning Table

1) Thin: Triaxial coplanar design improves the stacking of old bulky motors and greatly reduces the volume.

2) Accurate: The repeatability of the standard product can reach 0.002mm (2μm).

3) Stable: All screw, motor, linear track and machining parts are carefully tested and improved to effectively increase the stability of the platform.

2, Technical Data

3, Drawing
