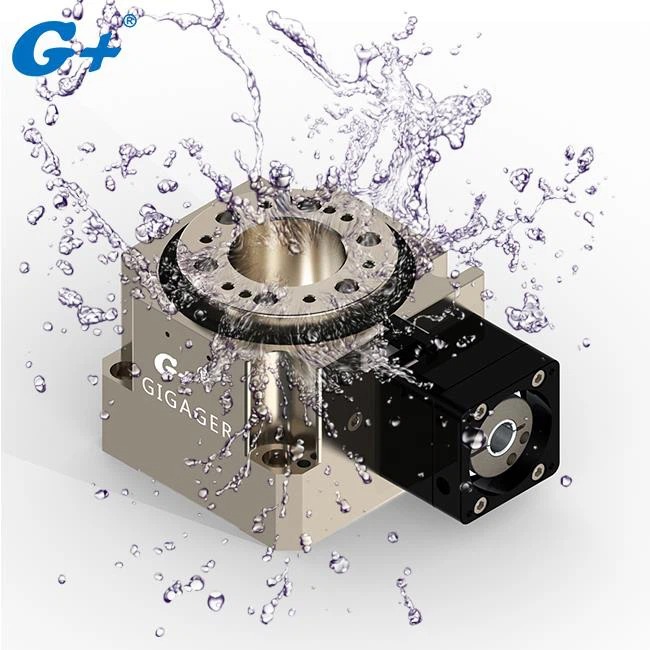

Featuring with high angular positioning accuracy combined with high load capacity with open center, G+ IP Rated Rotary Tables provides arc-sec positioning resolution, offering water-tight and dust-proof characteristics, meeting the requirement for humidity and water jet scenes in automation production line. Eliminating backlash, friction and wear problems, products assure against ingress of water and external particles.

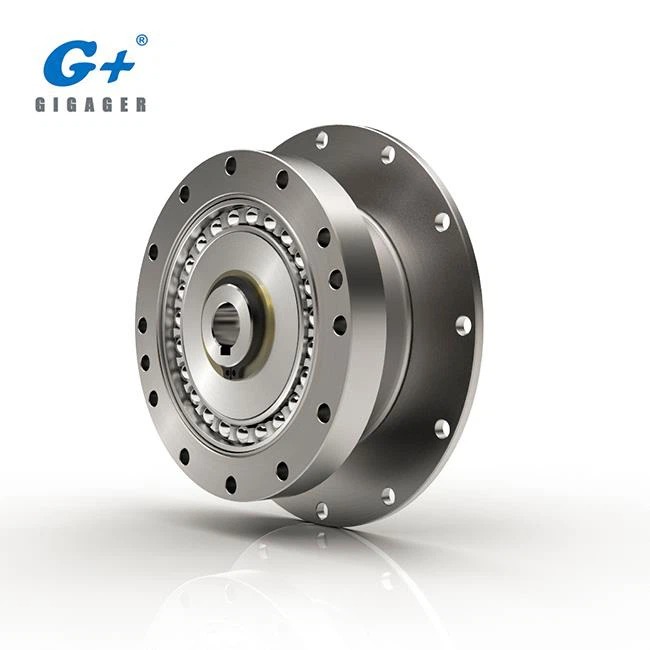

G+ SHF 14 series component gear set features a brim-like mounting surface and large through hole. Available in 4 reduction ratios 30:1 to 100:1, SHF offers peak torques 9 to 54 N•m. Made up of just 3 simple parts (flexspline, wave generator and circular spline), the SHF series were designed for direct integration into machinery and equipment.

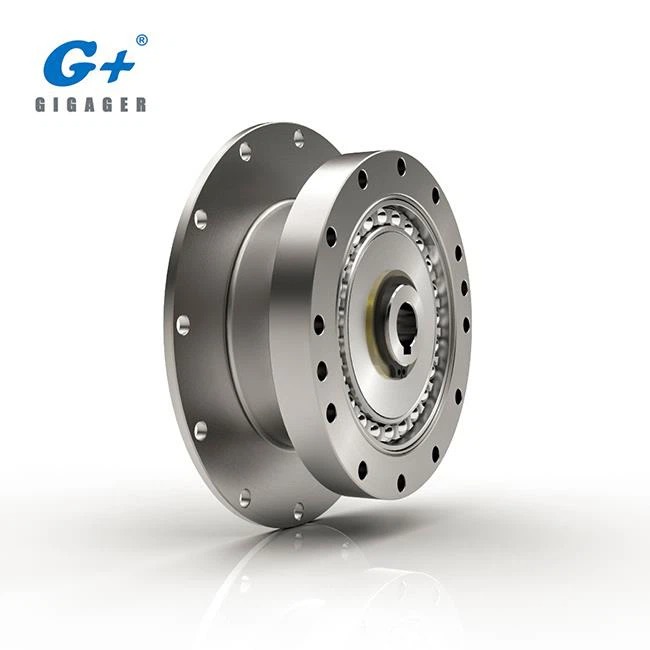

G+ Harmonic drive SHF-14-100-2A-R. High quality, short delivery time, high performance, welcome to inquire.

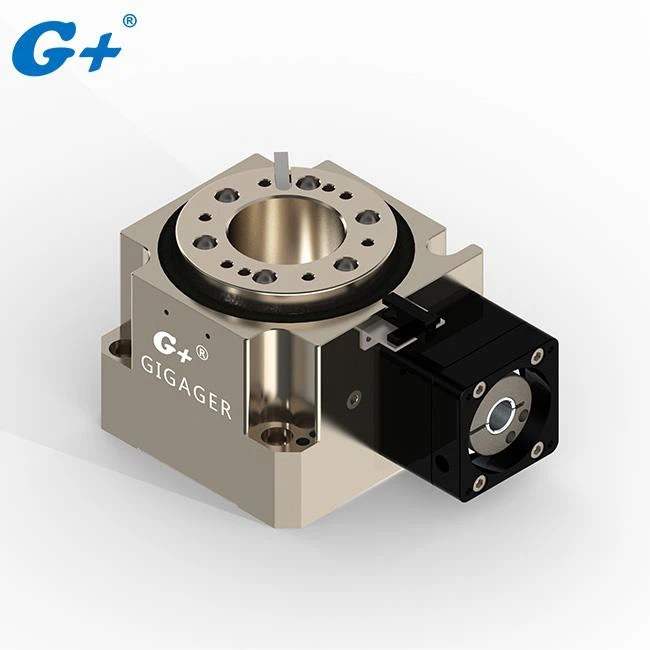

Hypoid Table is a kind of gearbox integrated right angle gearbox and Hypoid gears, featured with high torque, high gear ratio, high IP grade, high precision, low wear. It adopts sliding mode to rotate, the transmission precision can reach 30 arc seconds, the transmission efficiency is up to 96%; the gear geometric tolerance ≤ 0.002mm, up to JIS0 level standard.
GIGAGER supplies single stage and double stage with the gear ratio from 3K to 100K, various size, two types of output shaft (with key or smooth shaft type). GIGAGER insists on its excellent quality on the product to win the trust from the clients worldwide.

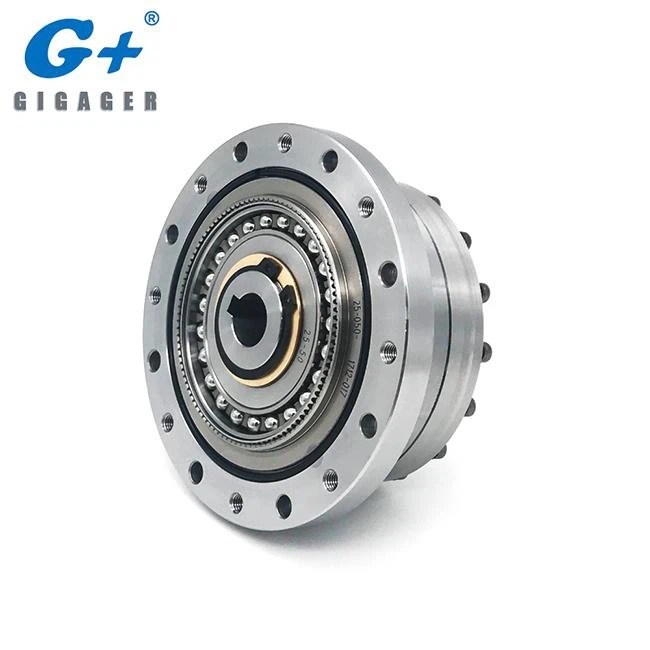

A type of high precision harmonic series with model number CSF-T-14 / CSF-T-17 / CSF-T-20 / CSF-T-25 / CSF-T-32. GIGAGER supplies a full size range of high cost performance harmonic reducers that matches the Japanese and American harmonic drive gearboxes….
A type of precision harmonic series with model number CSF-14 / CSF -17 / CSF -20 / CSF -25 / CSF -32. GIGAGER supplies a full size range of high cost performance reducers that matches the Japanese and American harmonic drive gearboxes. They are the…
Model SHF-S-14 / SHF-S-17 / SHF-S -20 / SHF-S -25 / SHF-S-32. SHF-S type is the shaft type. The principle of GIGAGER harmonic gear reduction is to use the relative motion of the Flexspline, Circular Spline and the wave generator,…
Widely used in robot joints with features of compact design, light weight, high torque, good quality with competitive price. GIGAGER supplies a full size range of high cost performance harmonic reducers that matches the Japanese and American gearboxes.
Designed specially for servo motor gearbox for motion control applications. It takes full advantage of the flexibility of the servo motor, giving designers greater freedom of mechanism design.
A combination application equipped with stepper motor or servo motor making the perfect two dimensional movement. It is widely used in the mobile phone engraving and inspection fields. It also can be used for other automation product.
Designed specifically for dynamic servo motors and also matched for servostep motor and stepper motor. They are able to realize high transmission ratios in just one stage with high precision and low backlash.
They are characterized by a whole new machine concept and design approach, allowing flexible use. All components are freely programmable and represent sound solutions for re-engineering. These tables could be added planetary to increase the gear ratio, available for matching with any brand servo motor and stepper motor based on our flexible flange system, thus make it easy for automation production line building and robot designing.
G+ Zero backlash Harmonic Drive-Hollow I series- Integrated Type Features: ● Flat shape· Standard structure ● Compacted and simple design ● Zero Backlash ● Input and output coaxially ● Extremely high positioning and Repeatability
G+ New design， Hollow Structure Hypoid Gearbox Speed Reducer Rotary Table
The linear module is a mechanical transmission component that provides linear motion. It has two types, namely ball screw type and belt type. The ball screw type is generally composed of ball screw, linear guide, aluminum alloy, ball screw holder, coupling, motor and photoelectric switch and other components.
